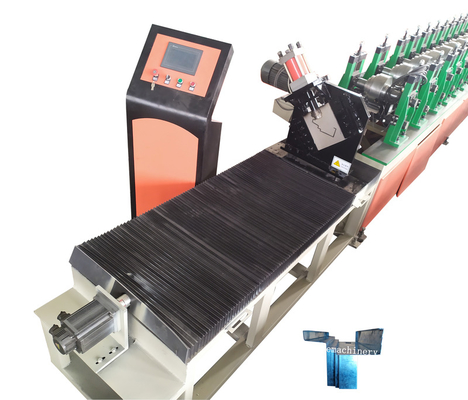

Automatic Galvanized Steel Plate Roller Shutter Door Frame Cold Roll Forming Manufacturing Machine
There are many different types of door frame profiles from different countries . But this door frame profile is very popular all over the world . The thickness of the material for this metal bending machine is 1.2mm , We can also make the thickness according to client requirement .
No. | Type | Specification | |
1 |
Row Material | Type | Colored steel plate, galvanized board, aluminum plate |
Feeding width | According to requirement | ||
Thickness | 0.6-1.2mm | ||
2 |
Main body | Roller station | 18 steps (According to the profile) |
Diameter of shaft | 50mm | ||
Shaft material | 45# Steel | ||
Roller material | 45# Steel | ||
Frame | 200mm H Steel | ||
Frame thickenss | 14 mm | ||
Operation | Manual and Automatic | ||
Working speed | 8-12 m/min | ||
Size (L*W*H) | About10200*1450*1810mm | ||
Weight | About 9.5 Tons | ||
Cutting type | Hydraulic cutting | ||
Material of blade | Cr12 | ||
3 | Power | Motor power | 4 kw |
Hydraulic power | 4 kw | ||
Voltage | 380V 50Hz 3phases or Customerization | ||
Driving way | By Chain | ||
3 Tons Decoiler -- Feeding and Guiding Table -- Main Roll Forming Machine -- PLC Control System -- Hydraulic Cutting Device -- Product Receiving Table
* High performance * No noise * Low cost
* 5 Years warranty * Long working life * Easy to operate
* High quality * Full Automatic * Pass ISO9001/CE
* Accurate * Teda brand PLC * Touch Screen
* Chain Drived * Two Operate Language
* 3 Tons Manual Deciler......................................1 Unit
* Main roll forming system.............................1 Unit
* Hydraulic system..................................1 Unit
* PLC Control Cabinet....................................1 Unit
* Receiving table.........................2 Unit
* Spare Part................1 Unit
If you want to learn more about this machine or has any questions , please contact us freely .
