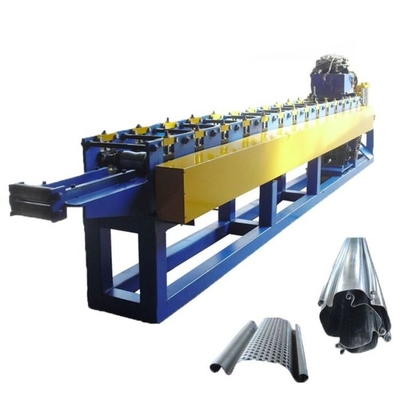

XHH JM85 Combined Automatic Steel Sheet Door Roll Shutter Slate Form Machine
Main Accessories:
(1) Main Forming Machine;
(2) 3 Tons Manual Uncoiler;;
(3) Hydraulic System;
(4) PLC Computer Controlling System with Touch Screen (Brand: Delta for PLC, touchingscreen,encorder and frequency changer);
(5) Hydraulic Forming Cutter;
(6) Run Out Tables(3 Units);
(7) Tools;
(8) Operation Manual.
Main Technical data
|
Size |
4000*900*1400mm |
|
Weight |
2500KGS |
|
Hydraulic Motor Power |
4KW |
|
Effective Width |
85mm |
|
Material Width |
136mm |
|
Forming Steps |
14stepsg |
|
Processing Speed |
8-12m/min |
|
Voltage |
380V/50HZ/3PH |
|
Material of principal axis |
high grade 45# forged steel |
|
Material of roller |
45#steel with hard chrome plating |
|
Material of blade |
Cr12 mould steel with quenched treatment 60-62°C |
|
Material for frame of machine |
Fine welded structural steel |
|
Sprocket wheel |
45 steel high-frequencies quench |
Material for producing roofing: normal colored painted and galvanized sheets with strength 245, 345MPA;
Warranty: 1 year and life-long maintain;
*Installation and debugging: We will send professional engineer to make installation and debugging, Buyer pay our engineer each one 50 USD/day, and provide accommodation, food and the round-trip ticket fee.
* Installation Days: about 5-7 days
