Ceilings LMS China Foshan Perforated Aluminum Slat Shutter Ceiling Tile Making Machine Cold Rolling Forming Machine

LMS China foshan Aluminum slat shutter ceiling tile making machine cold roll forming machine

• cold roll forming machine



• Aluminum slat shutter ceiling tile making machine



• aluminum open cell grilling ceiling tiles making machine



  Finished Products of Perforated ceiling tiles making machine:

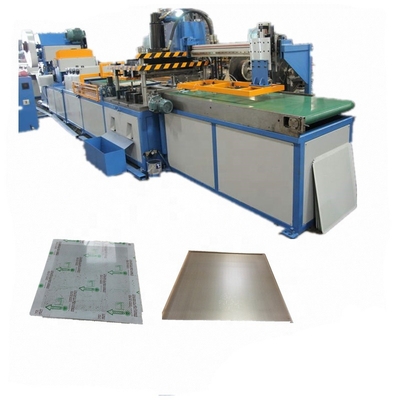

  The Whole Line of Perforated ceiling tiles making machine:



   Work Flow of  Perforated ceiling tiles making machine:







  Main Specification of Perforated ceiling tiles making machine:



  Incoming material  :                                                      Aluminum



  Thickness of  incoming material :                               0.6mm~0.7mm



  Width of incoming material :                                       According to the actual use



  Ceiling size :                                                                 600 x 600 mm



  With perforation :                                                            φ 1.8 mm, 2.5mm



  Speed :                                                                          3-4 piece /min



  Composition of Perforated ceiling tiles making machine :
  1. Hydraulic decoiler
  2. Leveling 1#
  3. Servo feeder
  4. Perforation power press
  5. Hydraulic cut-off
  6. Sheet conveyor 1#
  7. Leveling 2#
  8. Sheet conveyor 2#
  9. PLC controller with servo system
  10. Hydraulic system



  Main parameters of Perforated ceiling tiles making machine:



  1. Hydraulic decoiler of Perforated ceiling tiles making machine:





  2. First time leveling device of Perforated ceiling tiles making machine:



  3. Servo motor material feeding device and High speed punching machine

      of Perforated ceiling tiles making machine:





  5. Hydrulic Cut-off device of Perforated ceiling tiles making machine:





  6. Second-time Leveling of Perforated ceiling tiles making machine:







  7. Conveying Belt of Perforated ceiling tiles making machine:



  8. Micro-Perforation of Perforated ceiling tiles making machine:



  9. Panel Forming of Perforated ceiling tiles making machine:





  10. PLC Control System of
