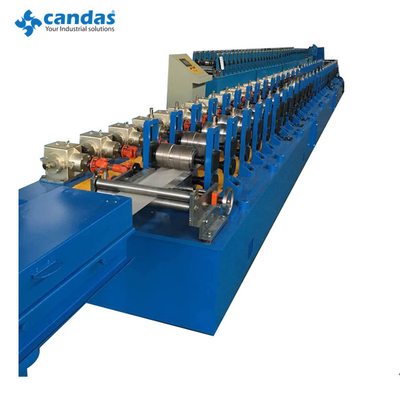

Product Name | Roller shutter slat forming machine | |
Uncoiler | 3 Ton | |
Material | aluminum sheet/steel sheet | |
Type | PLC automatic control system | |
Thickness | 0.27-0.50mm | |
Coil width | 229/313mm(according to profile type) | |
Drive type | gear box with universal joint transmission system/gear transmission system | |
Forming stations | 37 | |
Main motor power | 11KW | |
Forming Spec | HZ-77/90 | |
Forming Speed | 20-30m/min | |
Run out table | ||
Fly saw cutting with servo motor | ||
PLC automatic control system | ||
Low pressure polyurethane foaming machine (SAIP Italy or China Brand) | ||
Technical process: Uncoiler---Feeding guide---Roll forming---Preheating---PU foam injection---Heat preservation---Roll forming---Leveling--- Fly saw cutting with servo motor ---Platform conveyor---Mechanical punching---Run out table | ||
